Estech Schematic Tool V1.2.6 The AIO Hardware Complete Free Tool is a small tool designed for Windows computers. It allows users to look up schematics, Bitmaps circuit diagrams, and schematics of the entire Android and iPhone mobile. The tool is free to anyone who wants to use the application for 365 days at no cost.

Estech Schematic Tool V1.2.6 The AIO Hardware Complete Free Tool

Important:

If you are requested to update, and you are not interested, you can turn it off by pressing”Cancel. If you upgrade with the most recent versions, you’ll no longer be in; you will require a token code to access the tool. Re-register the tool using the new username or email. You can skip the latest updates and use the tool for a year.

Credit goes to the Estech Team, and we thank them for sharing the tool.

Complete Official Schematic Mobile Phone

Estech Schematic Tool V1.2.6

Detailed Information On Diode Mode, Voltage Input And Output, Information On Voltage & Signal, and Detailed Path Information & Complete Information For Hardware Troubleshooting Based On Real Case

Features Estech Schematic Tool:

Premium product with a full PCB & schematic and comparable measurements. Opening the old schematic or searching for the right measurement value is no longer necessary. Estech Schematic works online and requires paid access.

Estech Schematic is an essential tool for anyone who deals with phone device repair.

Estech Schematic Tool V1.2.6 The AIO Hardware Complete Free Tool

This online tool for viewing hardware schemes lets you make use of:

Bitmaps of PCB
Hardware repair solutions
Official PDF schematics

Smartphone Guideline (All hardware problems like an spk, ringer, LCD, and other issues that require solution using picture ):

— Lenovo – OPPO– Realme– Samsung- XiaomiMore models to come are scheduled to be updated

Schematics and Datasheet

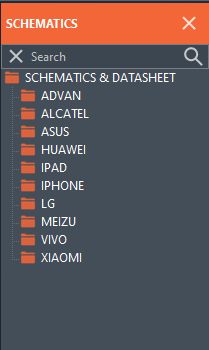

– Advan- Alcatel- Asus- Huawei- iPad- iPhone- LG- Meizu- VIVO- Xiaomi

PCB Bit mapping

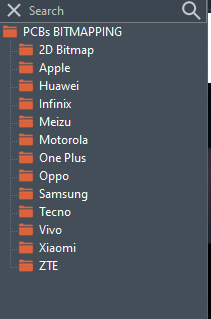

– 2D Bitmap- Apple- Huawei- Infinix- Meizu- Motorola- One Plus- Oppo- Samsung- Single Layer- Tecno- VIVO- Xiaomi- ZTE

Estech Schematic Tool V1.2.6 The AIO Hardware Complete Free Tool

PCB’s Multimeter

– Realme- VIVO- XiaomiHow To Use?

In the beginning, you must first download the file by clicking the link below.
After that, you need to unzip all the files on the drive c: It’s vitally crucial
Then you need to open the folder that you need to extract all the files
Run the ” Estech_Setup.exe“
After that, you can download the setup file and Click Next, and once the installation tool has been installed on your PC, close the setup file.
Then, you can run the program via the shortcut for your desktop
Click the Register button if you are an account that is new to you.
After that, you must fill out a brief form with your username, password, and email address. Click to click the Register button to make the tool active for a calendar year (365 days) free of any activation
Then, log in to the tool you used has recently filled in with information. Enter
Have fun with the tool!!
